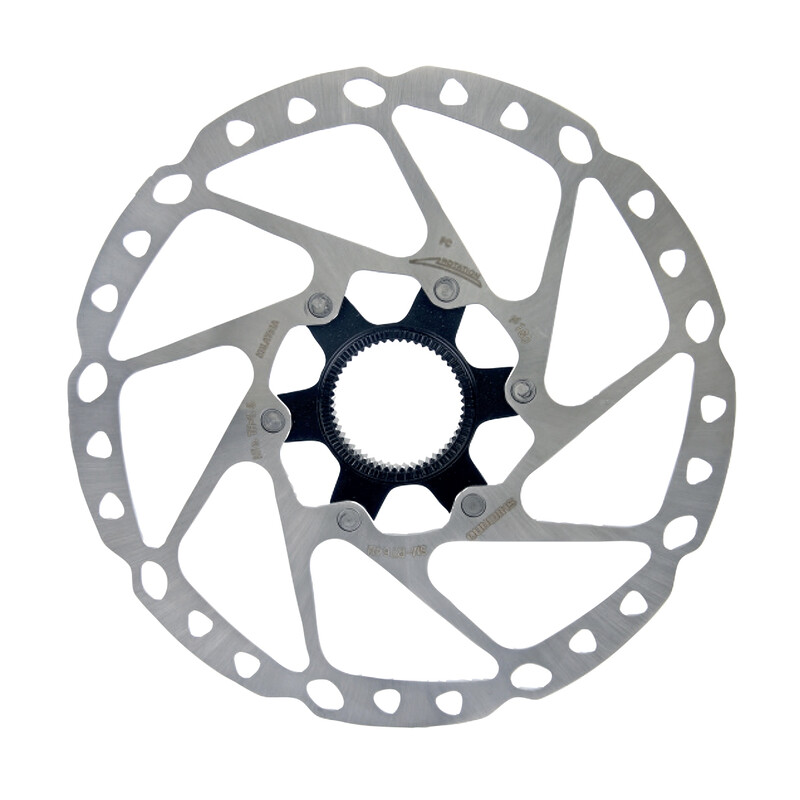

Shimano SM-RT64 Center-Lock Disc Rotor

Shimano SM-RT64 Center-Lock Disc Rotor

Shimano's CENTER LOCK mounting system makes installing and removing rotors quick and easy thanks to the spine mount and lock ring design.

Features - Shimano DEORE / GRX Center-Lock Disc Rotor SM-RT64

• Larger disc brake rotor option provides consistent brake performance with more power
• 220mm disc brake rotor provides 10% more stopping power than 203mm
• 140mm and 160mm optimal for Road / Gravel
• Lockring type with internal (Internal Serration) or external (External Serration) toothing

Product features

• Use: MTB, Road, Gravel
• Model: SM-RT64
• Disc: Center-Lock
• Pad compatibility: Metall / Resin (with BR-S700 and BR-S7000 Resin only!)

Diameter (choose variant)

• 160mm
• 180mm
• 203mm

Lockring type with internal or external tool holder!

Compatibility - Brake Caliper

• BR-M9100*, BR-M9120, BR-M9110-R**, BR-M9000, BR-M9020, BR-M8100, BR-M8120, BR-M8110-R*, BR-M8000, BR-M8020, BR-M7100, BR-M7120, BR-M7110-R*, BR-M7000, BR-M6100, BR-M6120, BR-M6000, BR-MT520, BR-MT420, BR-M820, BR-M640, BR-S7000, BR-S700, BR-R9270**, BR-R9170*, BR-R8170*, BR-R8070*, BR-R7070*, BR-4770*, BR-RS805*, BR-R785*, BR-RS785*, BR-RS505*, BR-RS405*, BR-RX810*, BR-RX400*, BR-CX77**, BR-R517**, BR-R317**, BR-RS305**, BR-U5000**

* not compatible with 203mm and 220mm
** only compatible with 140mm and 160mm

Material

• Rotor: Stainless steel
• Lockring: Steel
