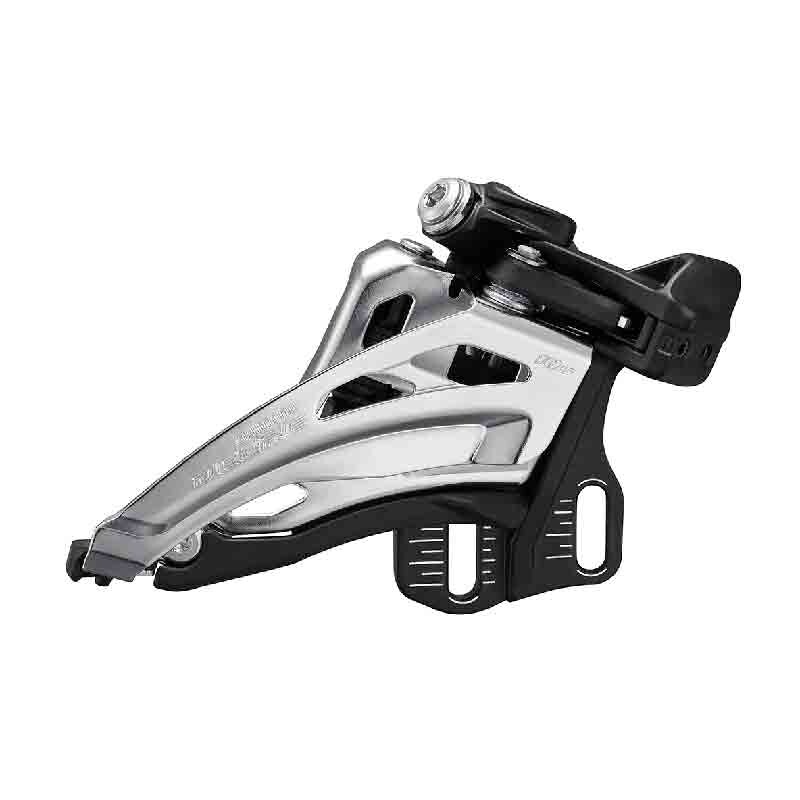

Shimano Deore FD-M4100-E 2x10S front derailleur

Features - Shimano Deore FD-M4100-E 2x10 speed front derailleur

The SHIMANO FD-M4100 2x10-speed front derailleurs use SHIMANO's new SIDE SWING technology for enhanced cable routing, light action, and smooth operation. The new design also increases clearance for large wheels and short chain stays.

• Smooth shifting by Side-Swing mechanism
• Increased tire clearance of 15mm allows for shorter chainstays
• Greater tire clearance - Compatible with 2.3-inch tire on wider rims
• Mounting options: Direct-Mount, E-Type, Clamp (choose variant)
• Adapt 48.8mm, 51.8mm chainline
• For DEORE FC-M4100-2 10-speed Crank 36/26

Product features

• Use: MTB
• Group: DEORE M4100
• Model: FD-M4100
• Cable route type: Front Pull
• Gear front: 2-speed
• Gear rear: 10-speed
• Top gear teeth: 36T
• Total capacity: 10T
• Compatible Chain: HG-X 10-speed
• Chain stay angle: 64-69°
• Chain line: 48.8mm (142mm) / 51.8mm (148mm Boost)

Mounting (choose variant)

• E-Type FD-M4100-E (without plate)

Material

• Aluminum
• Stainless steel
• Steel
