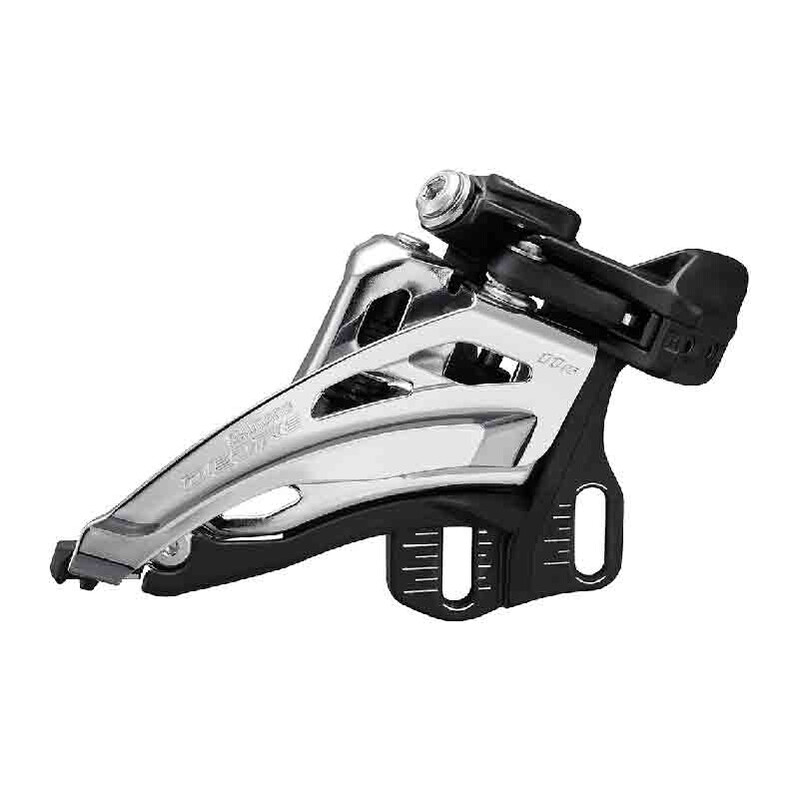

Shimano Deore FD-M5100-E 11S front derailleur

Features - Shimano Deore FD-M5100-E 11 speed front derailleur

Delivering quiet and smooth shifting, SHIMANO's FD-M5100 2x11 front derailleurs feature SHIMANO's new SIDE SWING technology. The new design offers enhanced cable routing, light action, and increases clearance for large wheels and short chain stays.

• Smooth and quiet front shifting on the trail
• More powerful outward shifting
• Wider traction range reduces chain rub for rear suspension bikes
• Extra wide range with front double 36-26T
• Wider tire clearance
• Compatible with 2.3-inch tire on wider rims
• One spec for 48.8 mm & 51.8 mm chainline
• Different options available
• Available in D, E, and M-type mounts
• *M type mount requires adapter (ø34.9 mm)

Product features

• Use: MTB
• Group: DEORE M5100
• Model: FD-M5100
• Cable route type: Front Pull
• Gear front: 2-speed
• Gear rear: 11-speed
• Top gear teeth: 36T
• Total capacity: 10T
• Compatible Chain: HG-X 11-speed
• Chain stay angle: 64-69°
• Chain line: 48.8mm (142mm) / 51.8mm (148mm Boost)

Mounting (choose variant)

• E-Type FD-M5100-E (without plate)

Material

• Aluminum
• Stainless steel
• Steel
